Architecture hub · Programme insert

Fig.01–06
Printed 2026-10-11
Quant architecture

架构

Eras

Architecture hub · Programme insert

Quant architecture

Private system · Fig.01 oldest · Fig.06 current

Six commits, six diagrams. Each figure draws the services and the edges present at that commit, from the April 2026 S3 website through the October 2026 Oakrelay Worker proxy.

Span
2026-04-17 – 2026-10-11
Eras
Fig.01 – Fig.06
Current
Oakrelay proxy · Fig.06
Proxy
quant.oakrelay.dpdns.org
Classic
d2c9pzwpavuktk.cloudfront.net
Source
README

Featuring layered services · directed protocol edges · S3 dashboard as the gold source of truth · Worker proxy, classic CloudFront, and side Workers as separate services on Fig.06

01Eras

Chronological
Fig.01 oldest · Fig.06 current

Versioning is Fig.NN @ shortsha. NN counts forward from the oldest era. The source of this table is docs/architecture/README.md on develop. The order path measured on technical sheet № 01 is the execution sheet; these figures are the topology at each commit.

Era table · date in UTC+8 · confidence is the evidence for that cut
Fig shortsha Date (UTC+8) One-line delta Confidence Present at commit
Fig.01 92d444f 2026-04-17 SQLite + Jinja → S3 website monolith (IBKR local + Alpaca bars) documented (92d444f generate.py website URL); yfinance edge inferred EC2, IBKR/ibgateway local, Alpaca hist, trading.db, S3 website, cron generate
Fig.02 a42ae99 2026-05-13 Dual-EC2 gateway-02 + quant-ec2-scheduler + Phase 6 Lambda (schedules disabled) documented (PHASES.md, ARCHITECTURE_REVIEW #2–3, f9347a6/a42ae99); public edge is the S3 website (inferred) EventBridge→scheduler, gateway-02, live-01, Lambda render (schedules disabled), sync inputs, Jinja, S3 website
Fig.03 eafff22 2026-07-24 Massive market data + Astryx signed React/channels/live + CloudFront documented cluster 0e5e18b/eafff22/6705c1f/d5b8a8f; Lambda render schedules disabled Massive, Astryx UI, CF d3f4e9lehnan57, gateway-02, GHA stage, IBKR path
Fig.04 c01b8f0 2026-09-23 Account 890968193131 rebuild + OAC + Alpaca/local-scanner documented 239e7d3/c01b8f0/ba1fd05/f36c5c6/b6210aa/d47f1a0 Massive, Alpaca REST, EventBridge→render enabled, live-01 24×7, OAC CF d2c9pzwpavuktk, assets bucket
Fig.05 be85f71 2026-10-10 EC2 sleeper + React-only publisher; classic CloudFront public path documented e8d6f2f/9b20c37/b0d5ccf/eb11bd1 + agent-memory live URL sleeper, React-only pub, CloudFront public entry, side Workers, replay
Fig.06 cfa3bc9 2026-10-11 Oakrelay Worker proxy + classic CloudFront (current) core stack documented; proxy host ops-captured / not in git sleeper, React publisher, CloudFront, side Workers, replay, Worker quant.oakrelay.dpdns.org

02Figures

Open a figure for the full PNG
1900 × 1360

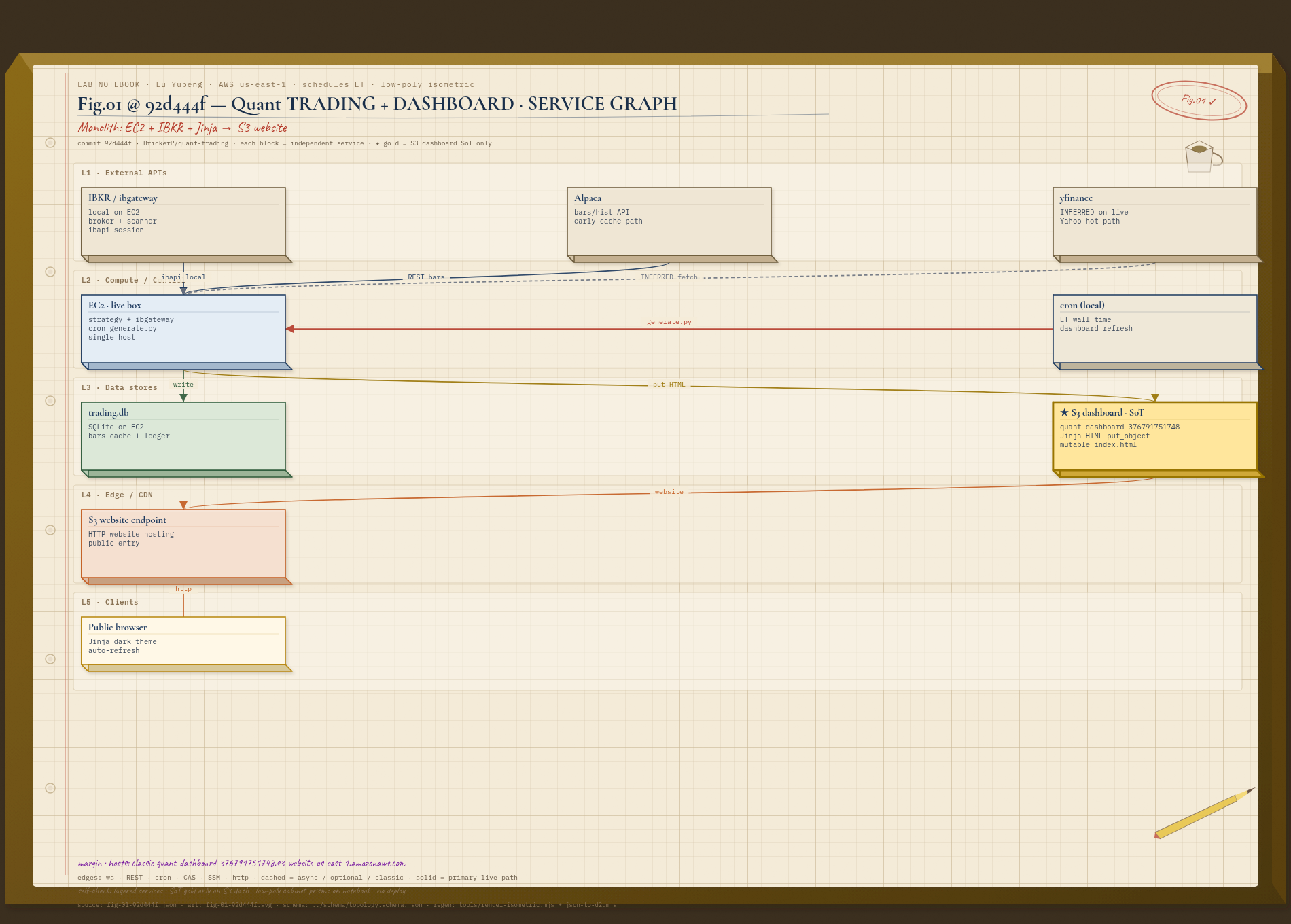

Fig.01 @ 92d444f — Monolith / S3 website

Fig.01 at 92d444f: EC2 with a local IB Gateway, Alpaca historical bars, trading.db, cron generate.py, and an S3 website dashboard.

2026-04-17 14:08 +0800 · Add SQLite persistence + S3 static dashboard

Public host: S3 website, account 376791751748. EC2 runs a local IB Gateway, Alpaca historical bars, and trading.db. Cron runs generate.py and publishes the Jinja dashboard to the S3 website.

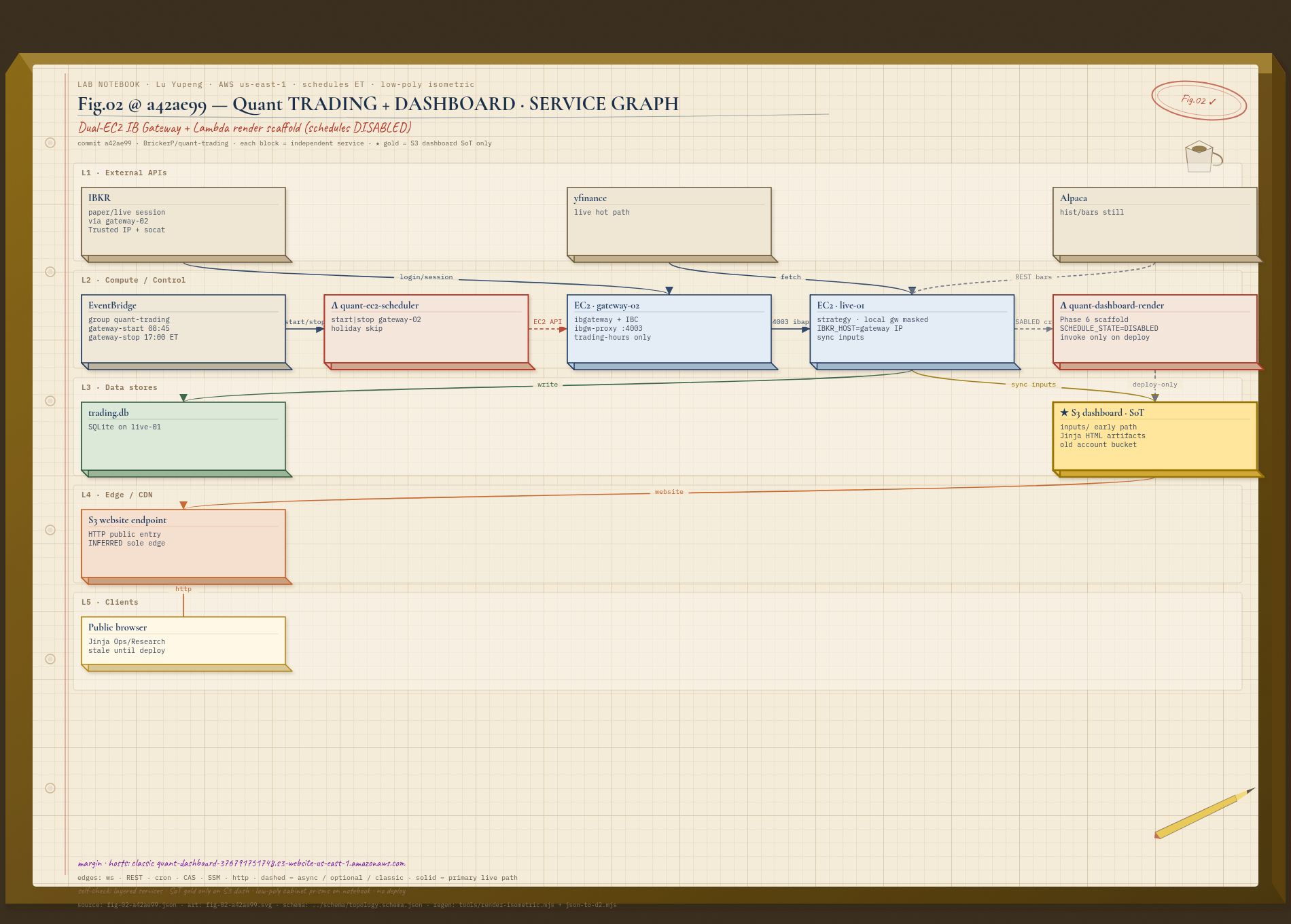

Fig.02 @ a42ae99 — Dual-EC2 + Lambda render

Fig.02 at a42ae99: EventBridge and quant-ec2-scheduler around gateway-02, live engine on quant-ec2-live-01, Phase 6 Lambda render with schedules disabled, and an S3 website.

2026-05-13 19:18 +0800 · feat(dashboard): Phase 6 - Lambda render with S3 inputs (#280)

Public host: S3 website. EventBridge drives quant-ec2-scheduler, which starts and stops gateway-02. The live engine runs on quant-ec2-live-01. Phase 6 Lambda render, schedules disabled, reads sync inputs; a Jinja publisher writes the S3 website.

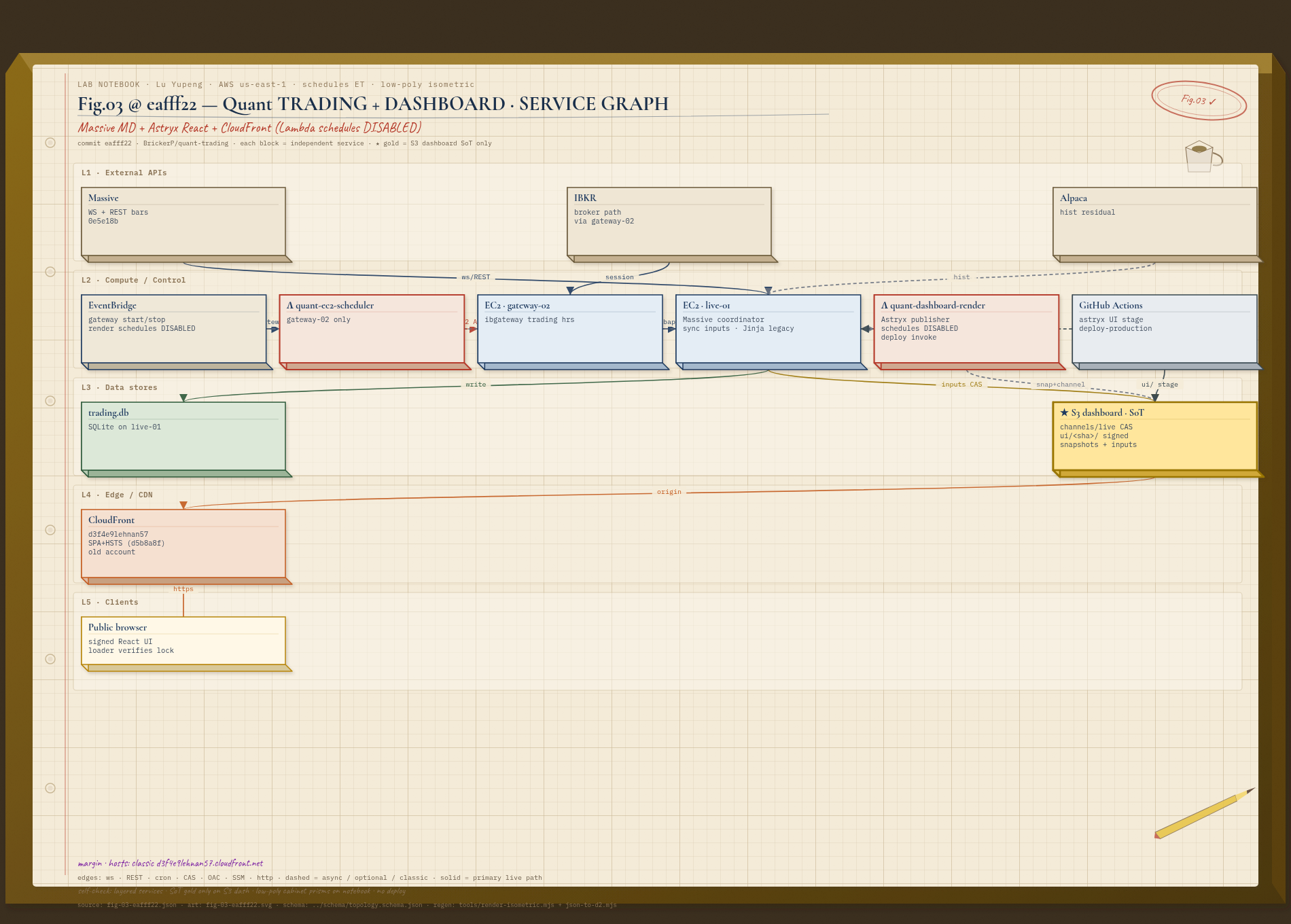

Fig.03 @ eafff22 — Massive + Astryx + CloudFront

Fig.03 at eafff22: Massive market data, signed Astryx React on channels/live, CloudFront d3f4e9lehnan57, GitHub Actions stage, and gateway-02 with the IBKR path.

2026-07-24 07:06 +0800 · feat(dashboard): ship immutable Astryx dashboard pipeline (#342)

Public host: CloudFront d3f4e9lehnan57.cloudfront.net. Massive market data and a signed Astryx React build on channels/live sit behind that distribution. GitHub Actions stages the dashboard. Gateway-02 carries the IBKR path into trading.db. Lambda render schedules are disabled.

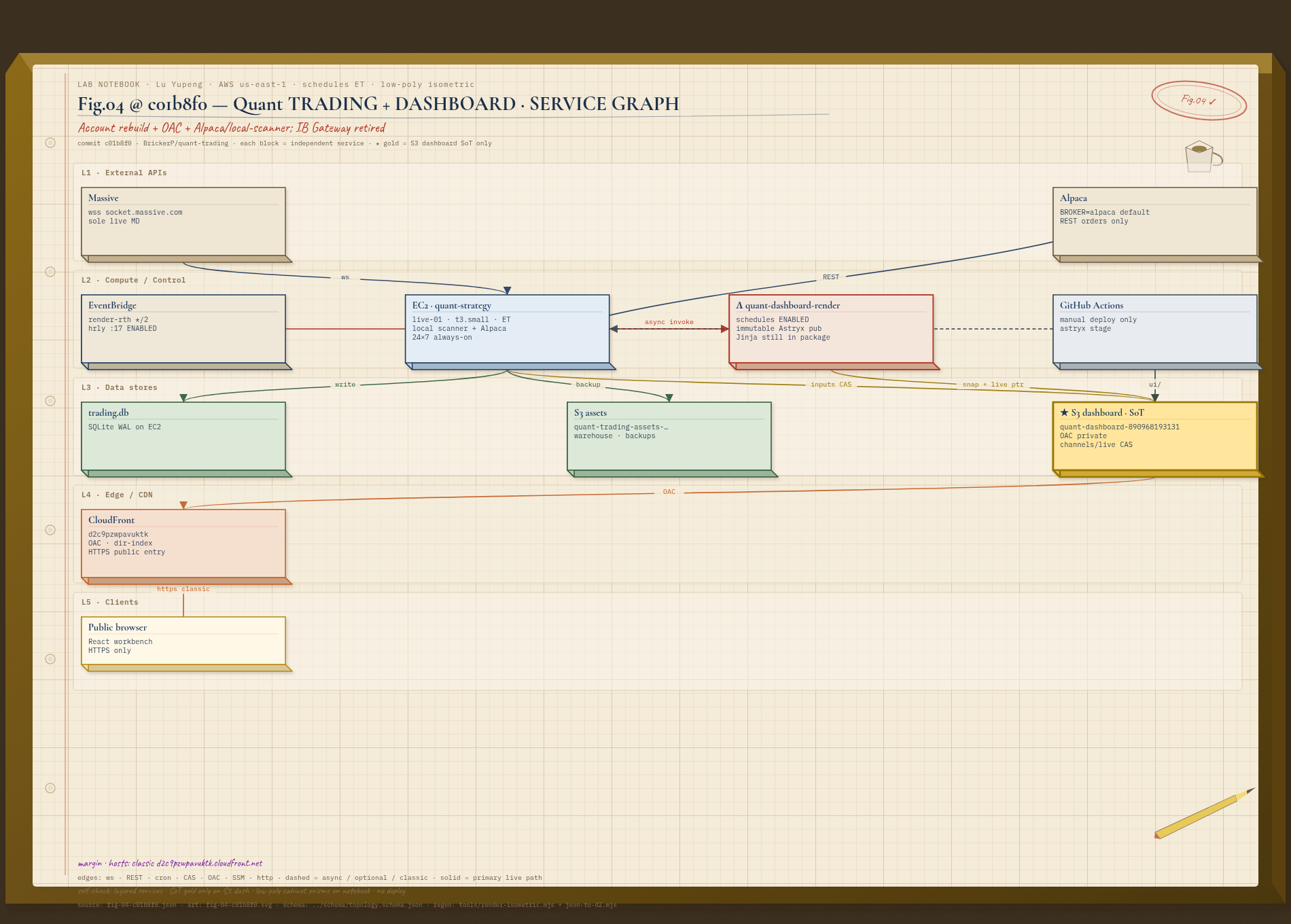

Fig.04 @ c01b8f0 — Rebuild / OAC

Fig.04 at c01b8f0: account 890968193131 with Alpaca REST, a local scanner, live-01 running 24×7, EventBridge render enabled, and CloudFront d2c9pzwpavuktk with origin access control.

2026-09-23 23:44 +0800 · chore: remove the dead IB Gateway path end to end (#387)

Public host: CloudFront d2c9pzwpavuktk.cloudfront.net, account 890968193131. Alpaca REST and a local scanner run on live-01, 24×7. EventBridge render schedules are enabled. Origin access control fronts separate dashboard and assets buckets. The S3 dashboard is the gold source of truth.

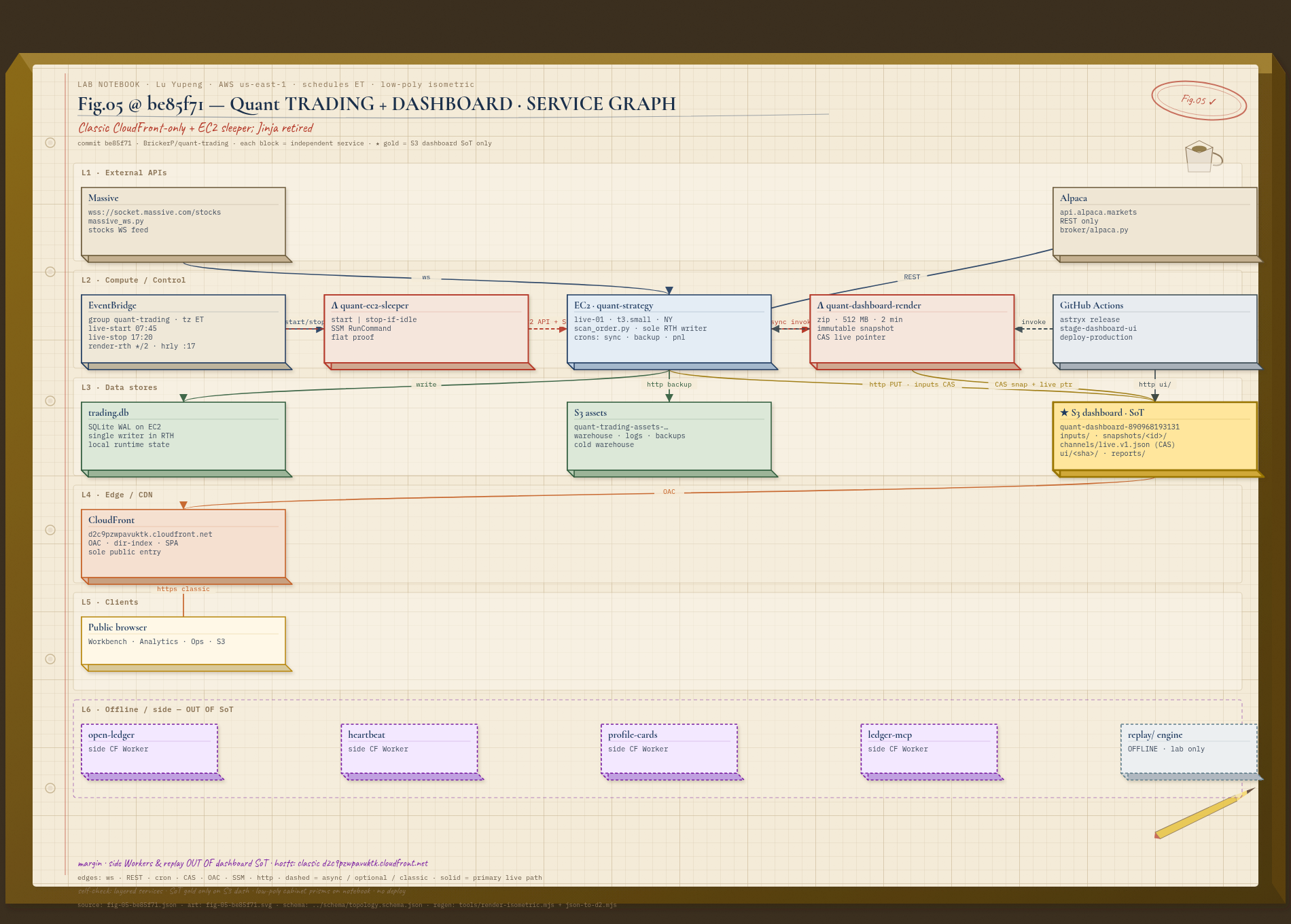

Fig.05 @ be85f71 — Classic CloudFront + EC2 sleeper

Fig.05 at be85f71: EC2 sleeper, React publisher, CloudFront d2c9pzwpavuktk as the public entry, side Workers open-ledger, ledger-mcp, and metrics, plus the replay CLI.

2026-10-10 20:16 +0800 · Dashboard summary: additive replay_attribution block (#478)

Public host: CloudFront d2c9pzwpavuktk.cloudfront.net. An EC2 sleeper runs between sessions. The publisher is React. Side Workers — open-ledger, ledger-mcp, and metrics — and the replay CLI sit beside the stack.

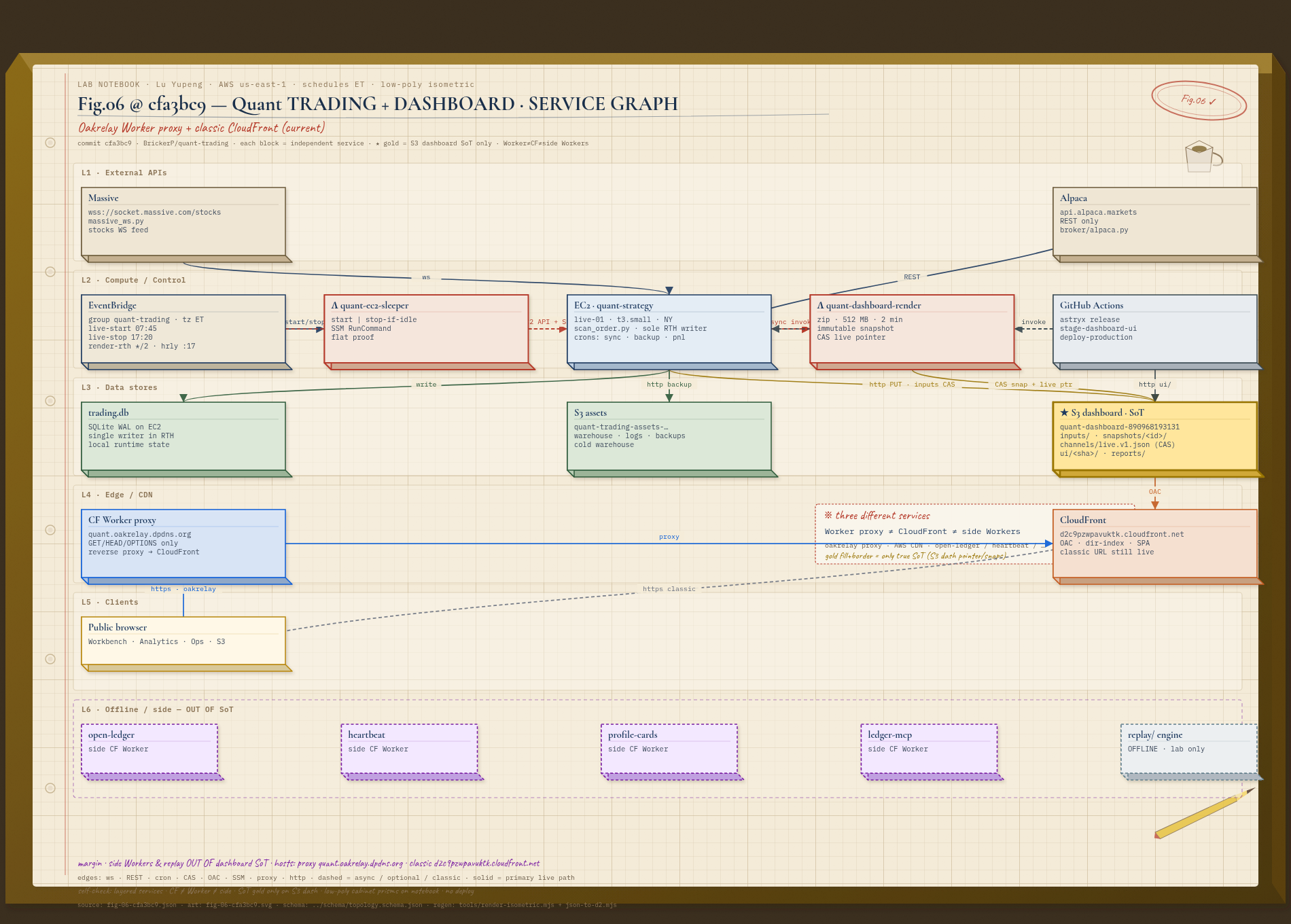

Fig.06 @ cfa3bc9 — Oakrelay Worker proxy

Fig.06 at cfa3bc9: Oakrelay Worker quant.oakrelay.dpdns.org proxying classic CloudFront d2c9pzwpavuktk, with the EC2 sleeper, React publisher, side Workers, and replay CLI.

2026-10-11 17:00 +0800 · ops: publish warehouse fills to open-ledger via GitHub Actions · current

Public hosts: Worker proxy quant.oakrelay.dpdns.org and classic CloudFront d2c9pzwpavuktk.cloudfront.net. The sleeper, React publisher, side Workers, and replay CLI are in the stack with them. The S3 dashboard is the gold source of truth. The proxy host is ops-captured.
